A true "plug-and-play" power supply solution. Housed in a standard 20- or 40-foot container, it offers exceptional mobility and impact resistance, specifically designed for mining sites, oilfields, and large-scale emergency projects.
Order(MOQ) :
1 UnitPrice Range :
65,000.00 / Unit

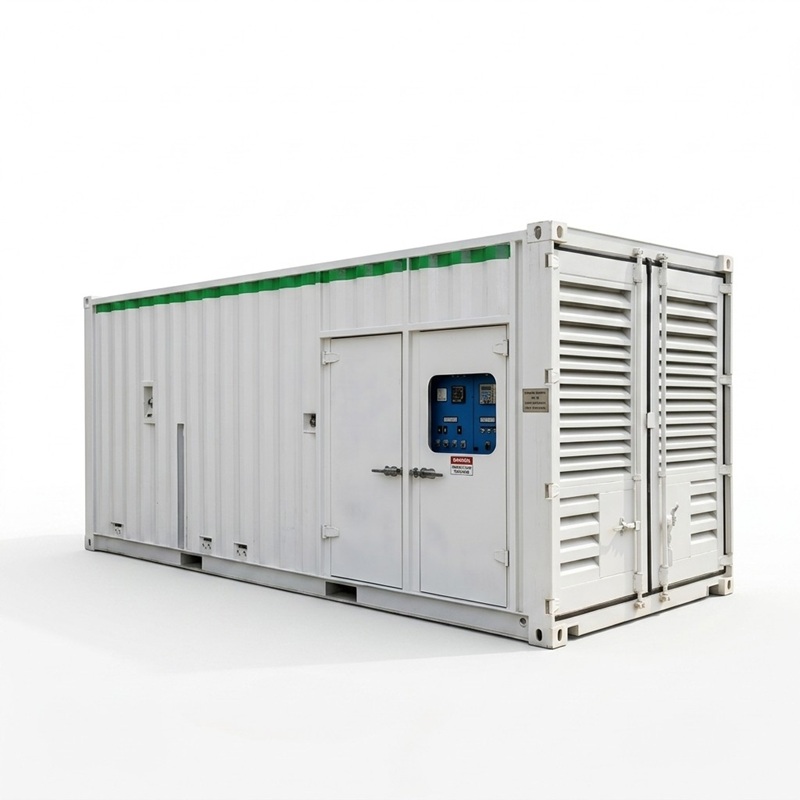

The Container Mobile Substation is a highly integrated, true "plug-and-play" power supply solution engineered for demanding and fast-paced environments such as open-pit mines, offshore oil platforms, and emergency rescue operations. Housed within a standard 20-foot or 40-foot container, this robust unit offers exceptional mobility, high impact resistance, and rapid deployment capabilities using standard flatbed trucks. It serves as a fully self-contained electrical system, featuring built-in transformers, high- and low-voltage switchgear, a dedicated electrical control room, and fire suppression systems. Equipped with pre-installed external interfaces, it allows for on-site power restoration in just a matter of hours, making it an indispensable asset for temporary and critical power demands.
| Model Series | Design Style | Capacity | MV/LV Configuration | Protection Class | Key Benefit |
|---|---|---|---|---|---|
| YB-Euro | Three-Compartment | 630 - 1600kVA | RMU + Transformer + LV | IP54 | Robust / Separate |
| ZGS-Pad | Combined / American | 300 - 2500kVA | Co-Tank (Oil Insulated) | NEMA 3R | Ultra-Compact |
| Mobile-Cont | Containerized | 500 - 3150kVA | 20ft / 40ft ISO | IP55 / DNV | Plug & Play |
| Indoor-Pack | Integrated Cabinet | 800 - 2000kVA | Dry-Type + Switchgear | IP3X | Space Saving |
| Solar-PV | Utility Scale | 1000 - 3500kVA | Dual-Split Winding | Outdoor C5 | Solar / ESS |
Our plug-and-play and highly mobile containerized substations are engineered for a wide range of demanding industrial sites and large-scale emergency projects:

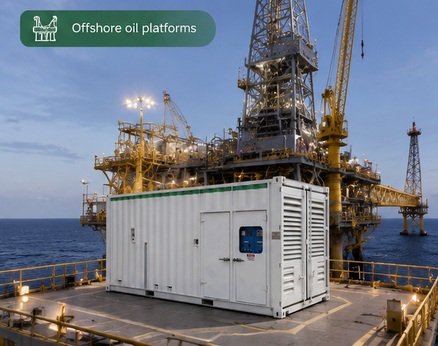

Offshore oil platforms

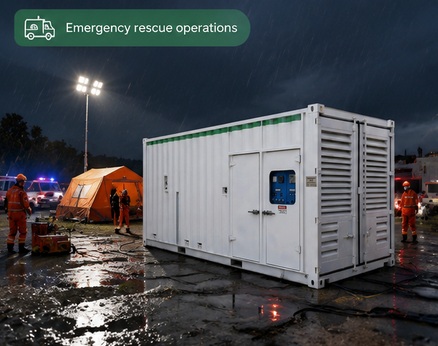

Emergency rescue operations

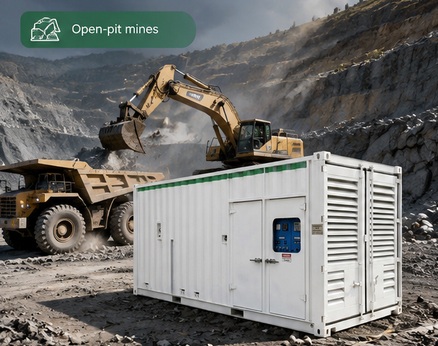

Open-pit mines

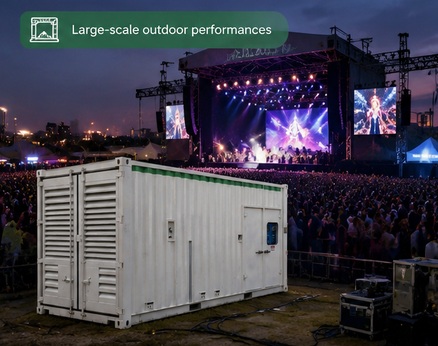

Large-scale outdoor performancess
✔ Standardized Design for Rapid Deployment

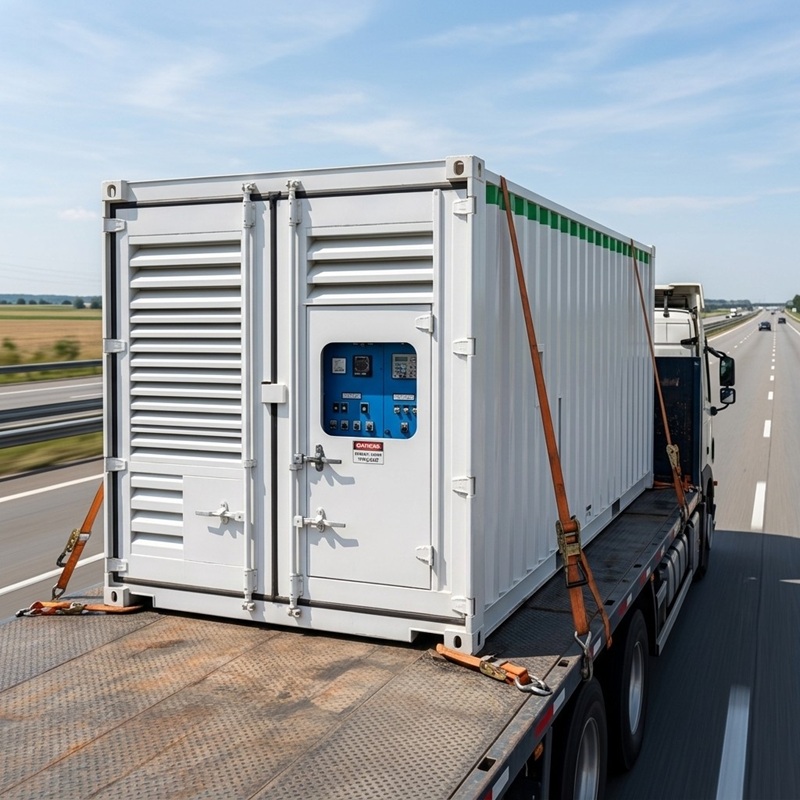

Built into standard 20-foot or 40-foot containers, this design eliminates the need for specialized transport vehicles. It allows for swift relocation and deployment via standard flatbed trucks , perfectly aligning with the fast-paced demands of temporary and emergency projects.
✔ Highly Integrated "Plug-and-Play" System
This fully self-contained unit houses transformers, high- and low-voltage switchgear, a dedicated control room, and fire suppression systems. Featuring pre-installed external interfaces, on-site setup requires only simple cable connections, restoring power within hours rather than days.
✔ Polar-Grade Climate Adaptability
Engineered to survive the harshest conditions found in open-pit mines and offshore oil platforms. By integrating optional air conditioning or low-temperature preheating systems, it guarantees stable operation across an extreme temperature range of -45°C to +55°C.
✔ International Standards & Marine-Grade Reliability
Manufactured to comply strictly with IEC and CE electrical standards. Furthermore, it meets DNV requirements for marine and offshore applications , and we offer rapid OEM customization to ensure the substation is engineered precisely to your project's technical specifications.
Q1: How quickly can the container substation be deployed and operational on-site?
Thanks to its plug-and-play design and pre-installed external interfaces, on-site power restoration is remarkably fast. Once delivered, it requires only standard cable connections, allowing the setup to be completed within hours.
Q2: Can this substation withstand extreme weather and temperature fluctuations?
Yes, it is built with polar-grade adaptability. By integrating optional air conditioning or low-temperature preheating systems, the substation can maintain stable operation across an extreme temperature range from -45°C up to +55°C.
Q3: What are the main industries and scenarios this product is designed for?
Because of its high mobility and integrated structure, it is specifically designed for applications requiring temporary or highly robust power solutions. This includes open-pit mines, offshore oil platforms, large-scale emergency rescue operations, and massive outdoor performances.
