The highly integrated YB series European-style box-type substation features a "Mu" or "Pin" shaped layout, seamlessly combining high-voltage ring main units, transformers, and low-voltage switchgear within a single weather-resistant enclosure, making it the preferred solution for urban power distribution.
Order(MOQ) :
1 UnitPrice Range :
38,000.00 USD/Unit

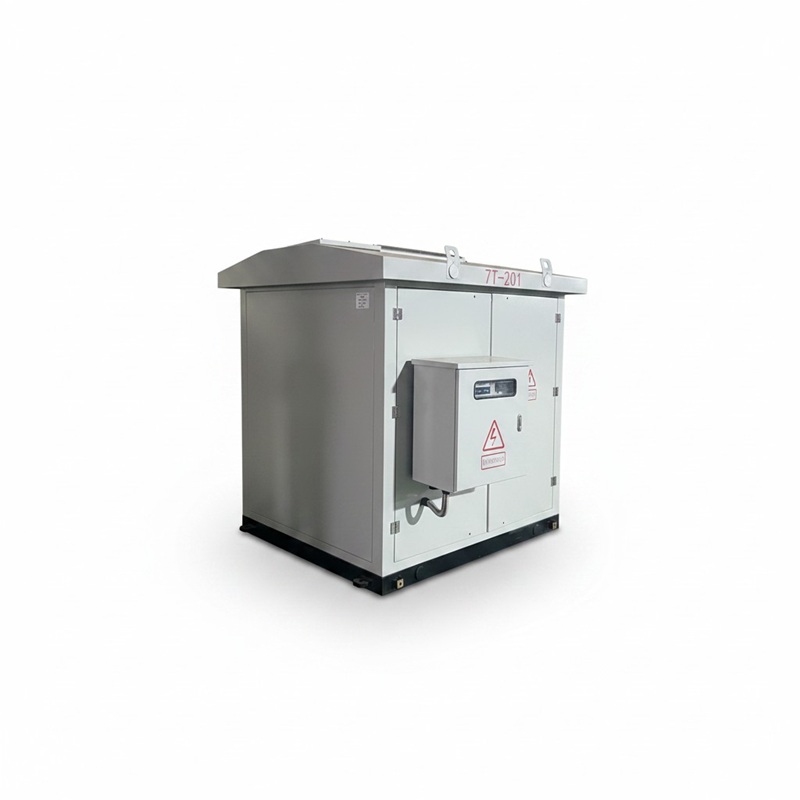

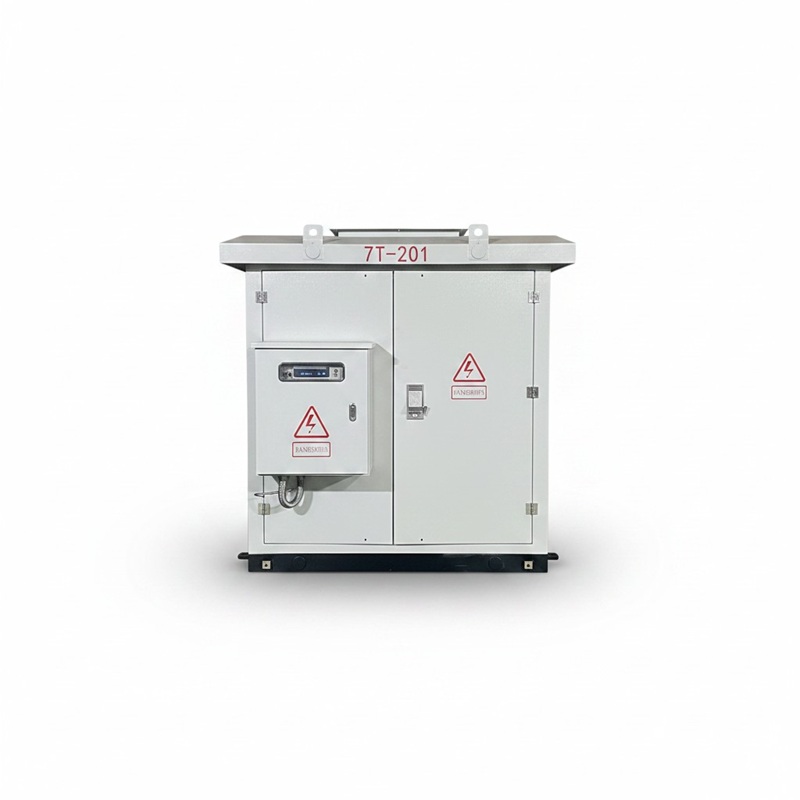

The YB series European-style compact substation is a complete power transformation and distribution system housed in a single, aesthetically pleasing, and weather-resistant enclosure. By separating the high-voltage ring main unit (RMU), the transformer, and the low-voltage distribution panels into three independent compartments, we ensure maximum safety and operational flexibility. This "substation in a box" arrives fully pre-tested and ready for connection, drastically reducing site work and civil engineering costs. Its robust construction makes it ideal for public parks, residential areas, and industrial construction sites.
| Model Series | Design Style | Capacity | MV/LV Configuration | Protection Class | Key Benefit |
|---|---|---|---|---|---|
| YB-Euro | Three-Compartment | 630 - 1600kVA | RMU + Transformer + LV | IP54 | Robust / Separate |
| ZGS-Pad | Combined / American | 300 - 2500kVA | Co-Tank (Oil Insulated) | NEMA 3R | Ultra-Compact |
| Mobile-Cont | Containerized | 500 - 3150kVA | 20ft / 40ft ISO | IP55 / DNV | Plug & Play |
| Indoor-Pack | Integrated Cabinet | 800 - 2000kVA | Dry-Type + Switchgear | IP3X | Space Saving |
| Solar-PV | Utility Scale | 1000 - 3500kVA | Dual-Split Winding | Outdoor C5 | Solar / ESS |
Our highly integrated and weather-resistant YB series European-style compact substations are engineered for a wide range of urban power distribution and industrial environments:

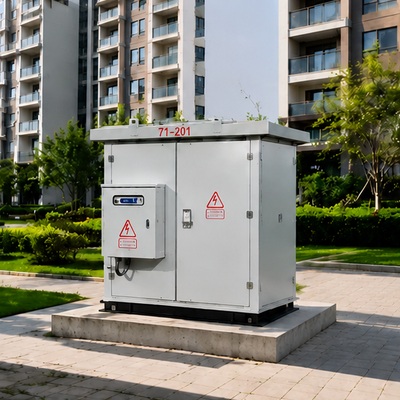

Residential complexes

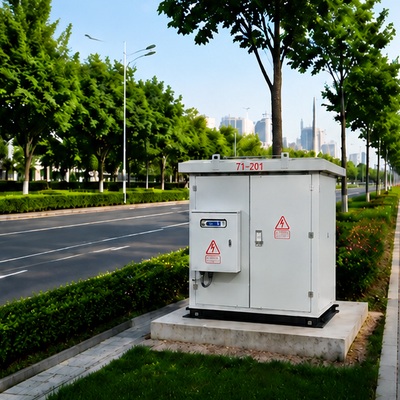

Street green belts

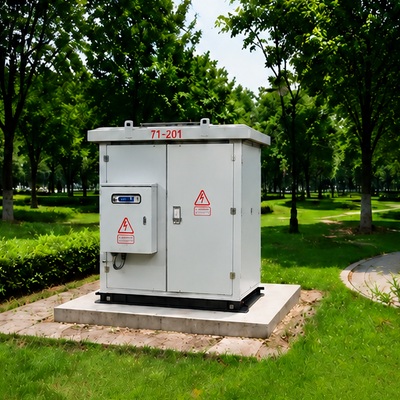

Large parks

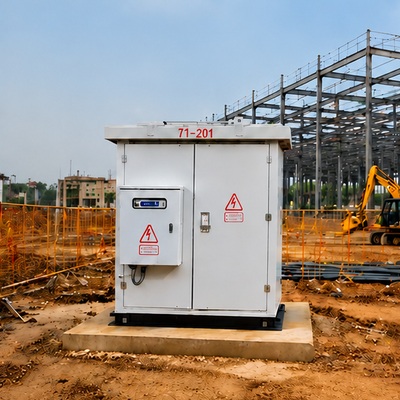

Temporary factory construction sites
✔ Rigorous Factory Pre-Testing
Every substation leaves our facility fully pre-tested and ready for immediate connection, guaranteeing operational reliability and drastically reducing the need for extensive on-site civil engineering work.
✔ Certified International Standards
Our manufacturing processes and product designs are backed by rigorous global industry benchmarks, including complete IEC and KEMA Type Test certifications.
✔ Seamless Component Integration
We specialize in highly integrated engineering, seamlessly combining high-voltage ring main units, transformers, and low-voltage switchgear into a cohesive, single-enclosure solution.
✔ Robust and Secure Construction
The substations are built with a weather-resistant, robust construction featuring an IP54 protection class, ensuring that the critical internal power distribution systems remain secure in demanding environments.
Q1: What components are integrated into the YB series European-style substation?
The YB series substation seamlessly combines high-voltage ring main units (RMU), transformers, and low-voltage distribution panels into three independent compartments within a single enclosure.
Q2: What are the typical application scenarios for this equipment?
Thanks to its robust construction and aesthetic enclosure finishes, it is perfectly suited for residential complexes, street green belts, large parks, and temporary factory construction sites.
Q3: How does the YB series improve installation time and efficiency?
This compact substation is delivered fully pre-tested and ready for connection, which significantly reduces civil engineering costs and cuts site installation time by up to 80% compared to traditional masonry substations.
