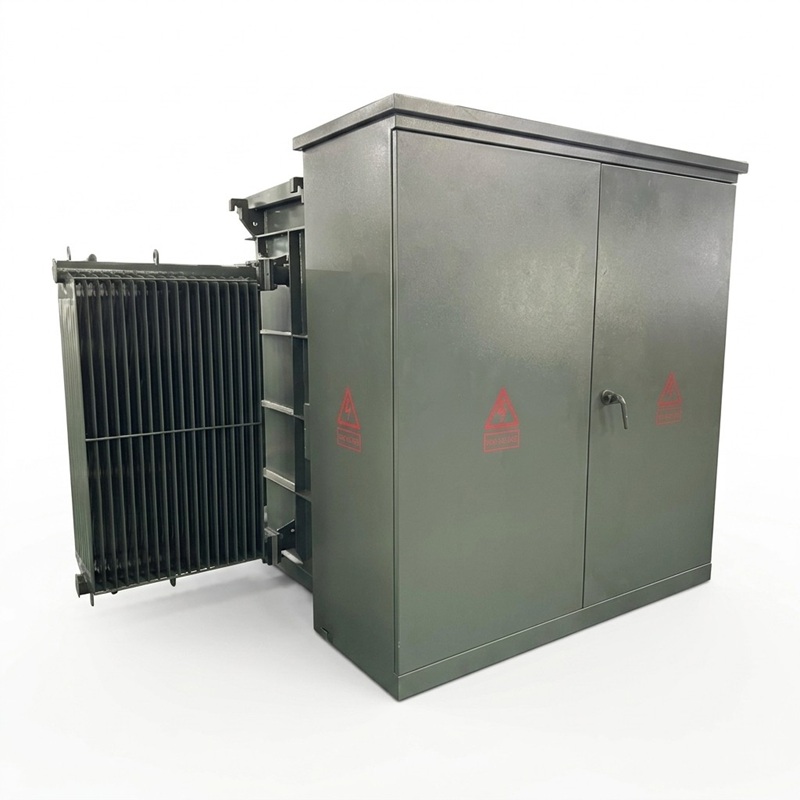

Compact American-style pad-mounted substation featuring a shared-tank design that houses the transformer core alongside high- and low-voltage components. With a footprint only one-third that of European-style substations, it is widely used in urban power grids and commercial power supply systems adhering to North American standards.
Order(MOQ) :
1 UnitPrice Range :
28,000.00 USD/ Unit
The ZGS-Pad series American-Style Pad-Mounted Compact Substation is an ultra-compact, fully insulated power distribution solution engineered to comply with strict North American standards, including IEEE and UL. Utilizing an innovative shared-tank, oil-insulated design, it integrates the transformer core alongside high- and low-voltage components, which significantly reduces electrical clearance and achieves a footprint only one-third the size of traditional European models. Operating within a capacity range of 300 to 2500kVA, the unit supports both loop feed and radial wiring configurations and features a centralized front-access panel for highly efficient maintenance. Encased in a NEMA 3R-rated, sealed structure with absolutely no exposed live parts, this substation guarantees maximum safety, making it an ideal, aesthetically pleasing choice for high-traffic public venues, campuses, and urban commercial grids across North and Latin America.
| Model Series | Design Style | Capacity | MV/LV Configuration | Protection Class | Key Benefit |
|---|---|---|---|---|---|
| YB-Euro | Three-Compartment | 630 - 1600kVA | RMU + Transformer + LV | IP54 | Robust / Separate |
| ZGS-Pad | Combined / American | 300 - 2500kVA | Co-Tank (Oil Insulated) | NEMA 3R | Ultra-Compact |
| Mobile-Cont | Containerized | 500 - 3150kVA | 20ft / 40ft ISO | IP55 / DNV | Plug & Play |
| Indoor-Pack | Integrated Cabinet | 800 - 2000kVA | Dry-Type + Switchgear | IP3X | Space Saving |
| Solar-PV | Utility Scale | 1000 - 3500kVA | Dual-Split Winding | Outdoor C5 | Solar / ESS |
Our ultra-compact and fully insulated American-style pad-mounted substations are engineered for a wide range of urban power grids, commercial districts, and public venues:
✔ Strict Compliance with North American & International Standards
Designed and manufactured to fully comply with IEEE C57 and UL standards , ensuring reliable operation in US-standard commercial districts and Latin American urban power distribution systems.
✔ Ultra-Compact Shared-Tank Design
Features an innovative shared-tank design that houses the transformer core alongside high- and low-voltage components. Utilizing transformer oil as the insulating medium , its footprint is only one-third that of traditional European-style substations, significantly saving valuable space.
✔ NEMA 3R Fully Insulated Safety
The equipment features a NEMA 3R protection class and a fully insulated, sealed design with no exposed live parts. This meets high safety standards, making it perfectly suitable for outdoor installation in public venues with high pedestrian traffic, such as lawns and campuses.
✔ Flexible Wiring & Front-Access Operation
Fully supports both Loop Feed and Radial wiring configurations to meet diverse project requirements. All core operating components are centralized on the front panel, facilitating quick on-site maintenance and servicing.
Q1: What is the main space advantage of this American-style substation?
By utilizing a shared-tank, oil-insulated design, this unit requires only one-third of the footprint of a traditional European-style substation, making it highly space-efficient for urban and commercial projects.
Q2: Is it safe to install this unit in public spaces like parks or campuses?
Yes, it is explicitly designed for public safety. The substation features a fully insulated, completely sealed structure with absolutely no exposed live parts, ensuring maximum safety in high-pedestrian areas.
Q3: How does the compact design impact routine maintenance?
Maintenance remains highly efficient. All operating components are centralized on a single front-access panel, allowing technicians to perform quick inspections and servicing without needing full-perimeter access.
