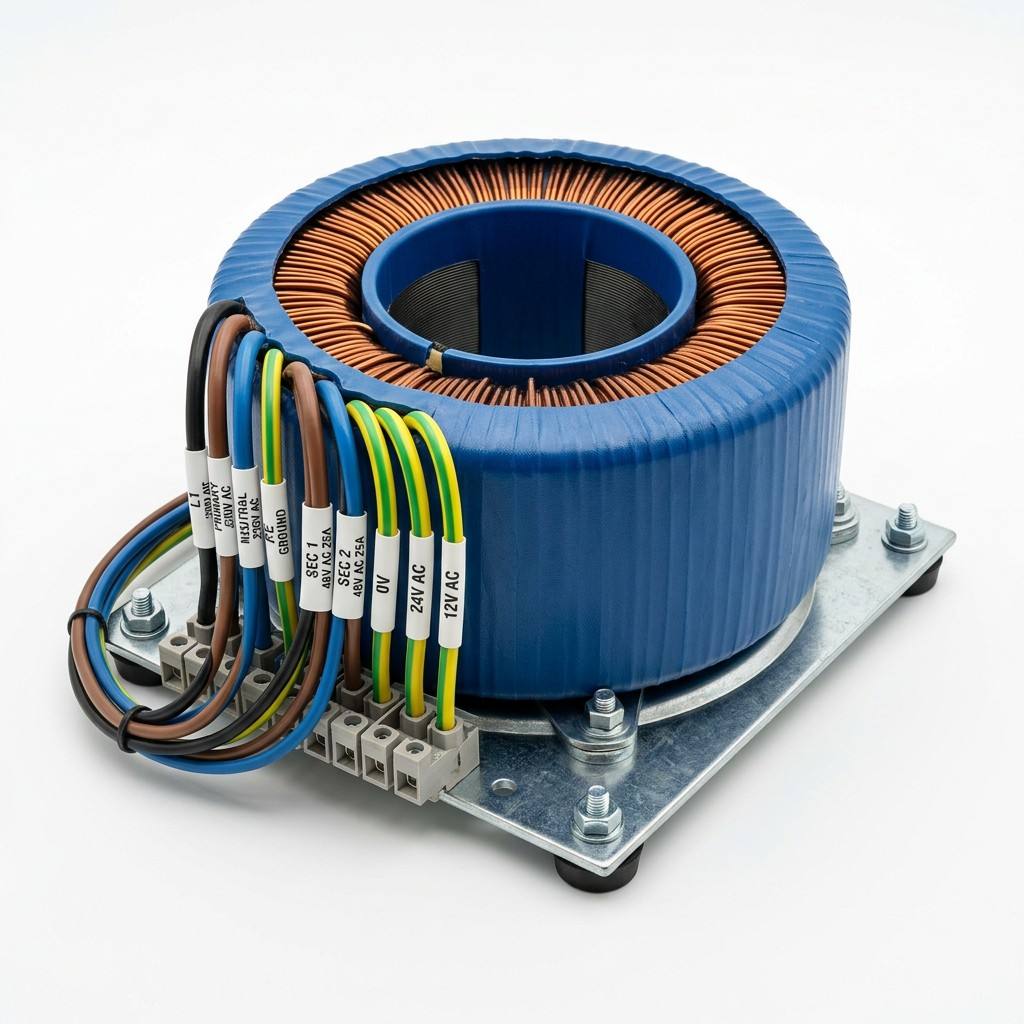

A stable and reliable 50/60Hz toroidal transformer designed for long-term continuous industrial environments. Utilizing CRGO silicon steel sheets, it ensures excellent voltage regulation even under harsh power grid conditions.
Order(MOQ) :
15 UnitsPrice Range :
850.00 USD/Unit

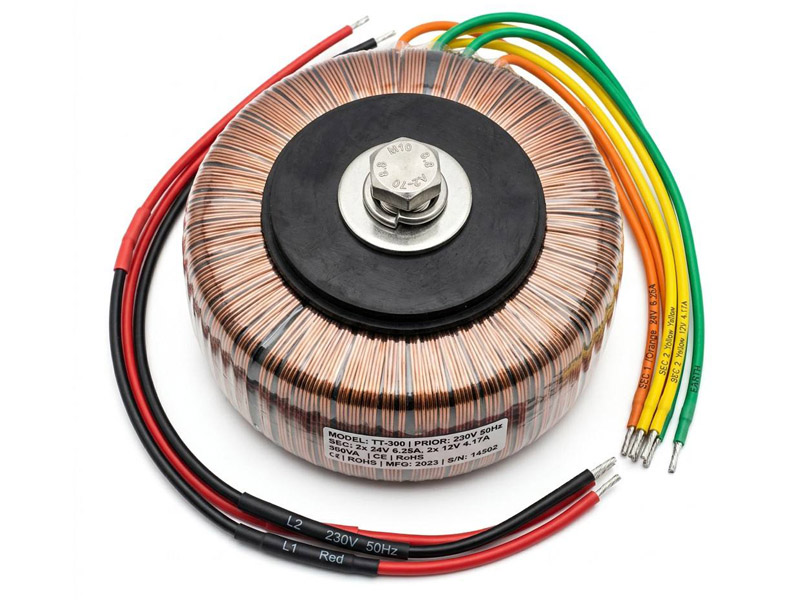

Engineered for extreme reliability, our 50/60Hz Low Frequency Toroidal Transformers are designed for long-term continuous operation in demanding industrial environments. Utilizing premium CRGO (Cold Rolled Grain Oriented) silicon steel sheets, these transformers ensure exceptional voltage regulation and stable power delivery, even under the harshest and most fluctuating power grid conditions.

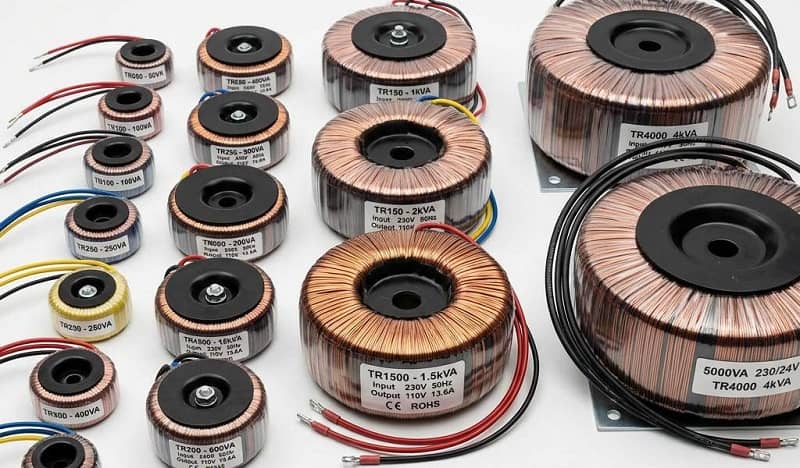

| Model Series | Application Focus | Power Range | Primary / Secondary Voltage | Key Standards | Efficiency |
|---|---|---|---|---|---|
| TR-Audio | Hi-Fi Audio & Pro-Sound | 50VA - 1000VA | 110V/220V to 12V-36V | CE, RoHS | > 95% |
| TR-Medical | Medical Grade Diagnostic | 100VA - 3kVA | Ultra-Low Leakage (<100μA) | IEC 60601-1, UL | > 92% |
| TR-Industrial | Voltage Conversion | 300VA - 5kVA | 380V/220V/110V Universal | CE, CB | > 96% |
| TR-Power | Industrial Automation | 50VA - 10kVA | 50/60Hz Custom Ratios | IEC 61558 | > 94% |
| TR-LED | Outdoor Landscape | 100W - 600W | 120V/240V to 12V/24V | ETL, IP65 | > 90% |
Perfectly suited for industrial automation, power testing benches, security and surveillance systems, and communication base station power supplies.
✔ ISO 9001:2015 Partner Facilities
Strict quality control from raw CRGO steel sourcing to final heavy-duty winding.
✔ 1.2x Overload Tested
Every transformer is individually tested to handle harsh inductive load impacts.
✔ Global Standards Compliance
Products are manufactured through qualified facilities meeting strict IEC 61558 requirements.
✔ Rapid OEM/ODM Customization
Quotations within 24 hours and fast prototype samples engineered to your multi-phase specs.
Q1: Can this transformer handle the startup surge of industrial motors?
Yes, our power-frequency toroidal transformers are purposefully designed with a 1.2 times short-time overload capacity to safely manage inductive load starting impacts smoothly.

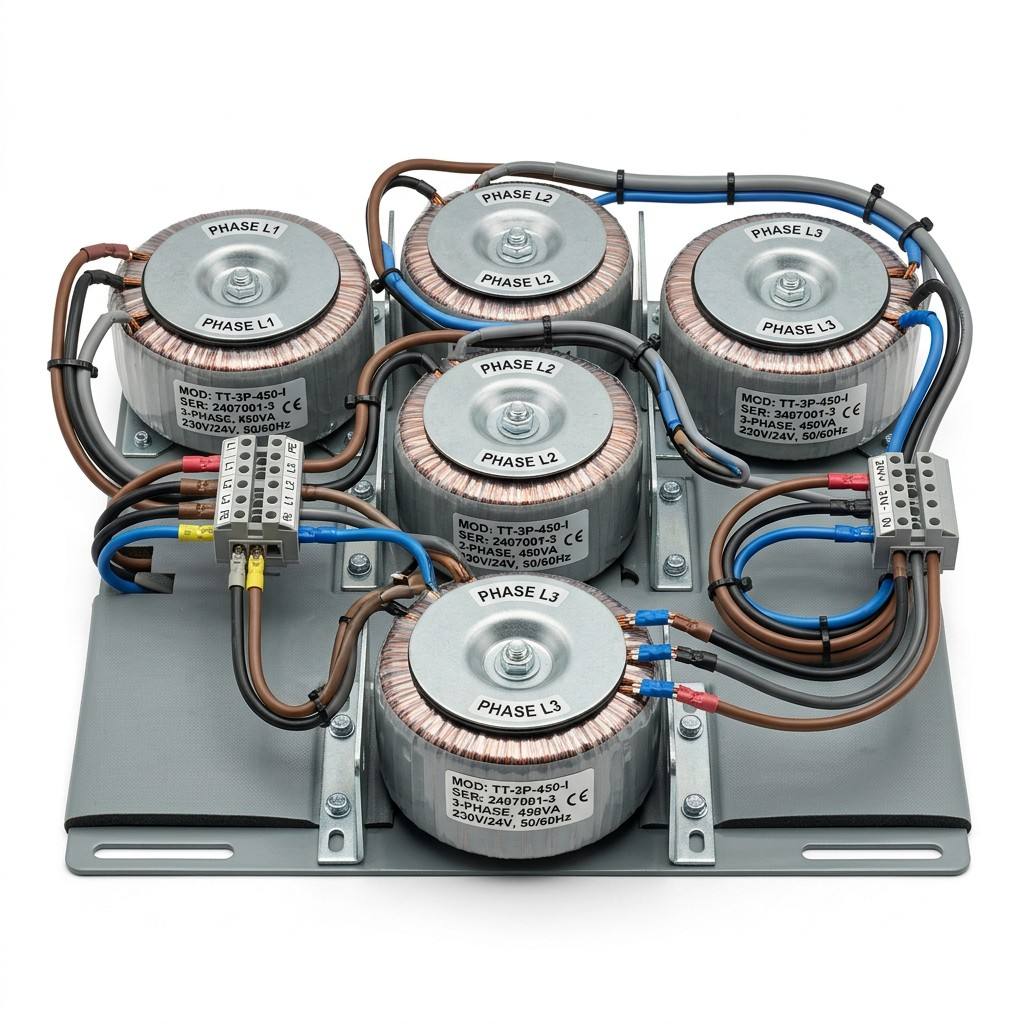

Q2: Do you offer three-phase solutions for heavy industrial automation?
Absolutely. We provide both single-phase and three-phase combination solutions tailored exactly to your equipment and local power grid requirements.
Q3: What core material do you use to ensure efficiency?
We utilize premium Cold Rolled Grain Oriented (CRGO) silicon steel sheets with a thickness of 0.23-0.30mm. This ensures excellent magnetic permeability and stable voltage regulation even under harsh conditions.
A high-fidelity power transformer designed specifically for high-end Hi-Fi audio amplifiers. Wound using a high-permeability CRGO core and Class H all-copper enameled wire, it features extremely low magnetic leakage, a low noise floor, and excellent dynamic response, making it an ideal power source for high-quality audio equipment.
Read More
An isolation transformer compliant with the IEC 60601-1 medical safety standard. It features ultra-low leakage current (<100μA), providing a superior safety barrier that effectively protects patients and sensitive medical equipment from electric shock.
Read More
A high-performance industrial voltage conversion transformer designed to support equipment operating under the voltage standards of various countries. Featuring all-copper windings, a compact footprint, and high efficiency, it is the preferred power solution for exported machinery and automated production lines.
Read More
A stable and reliable 50/60Hz toroidal transformer designed for long-term continuous industrial environments. Utilizing CRGO silicon steel sheets, it ensures excellent voltage regulation even under harsh power grid conditions.
Read More
Professional-grade outdoor waterproof LED landscape transformer, providing safe 12V/24V low-voltage output. With an IP65 protection rating, it is UV resistant and corrosion resistant, perfectly suited for the North American and European outdoor lighting markets.
