A specialized box-type substation for the new energy sector. It utilizes a transformer with split-winding configuration, allowing for simultaneous connection to two inverter inputs; it features exceptional harmonic suppression capabilities and is perfectly suited for large-scale ground-mounted grid applications.
Order(MOQ) :
1 UnitPrice Range :
48,000.00 USD/Unit
The transition to renewable energy requires specialized infrastructure. Our Solar PV Compact Substations are engineered to handle the unique demands of utility-scale solar farms and Battery Energy Storage Systems (BESS). Featuring a dual-split winding transformer, these units can simultaneously receive power from two separate inverter streams while minimizing harmonic interference. The entire unit is built for outdoor survival in C4/C5 corrosive environments (such as deserts or coastal areas) and includes advanced monitoring for remote grid-level management.
| Model Series | Design Style | Capacity | MV/LV Configuration | Protection Class | Key Benefit |
|---|---|---|---|---|---|
| YB-Euro | Three-Compartment | 630 - 1600kVA | RMU + Transformer + LV | IP54 | Robust / Separate |
| ZGS-Pad | Combined / American | 300 - 2500kVA | Co-Tank (Oil Insulated) | NEMA 3R | Ultra-Compact |
| Mobile-Cont | Containerized | 500 - 3150kVA | 20ft / 40ft ISO | IP55 / DNV | Plug & Play |
| Indoor-Pack | Integrated Cabinet | 800 - 2000kVA | Dry-Type + Switchgear | IP3X | Space Saving |
| Solar-PV | Utility Scale | 1000 - 3500kVA | Dual-Split Winding | Outdoor C5 | Solar / ESS |
Our high-efficiency and C5-rated solar PV compact substations are engineered for a wide range of utility-scale solar farms, wind farms, and energy storage systems:
✔ Advanced Dual-Split Winding Technology
Engineered to simultaneously handle dual inverter streams, this specialized design effectively manages unbalanced loads, minimizes circulatory losses, and delivers exceptional harmonic suppression for superior grid stability.
✔ Built for C4/C5 Corrosive Environments
Designed to survive the harshest outdoor conditions, from coastal areas to arid deserts. The unit features specialized sealing and cooling mechanisms to resist severe dust, sand storms, and high UV radiation.
✔ Smart Grid & SCADA Integrated
Ready for modern remote management, the system comes pre-wired for SCADA integration. This allows utility operators to conduct real-time monitoring and control of grid-level performance from any location.
✔ Globally Certified Utility-Scale Reliability
Fully compliant with stringent CE, TUV, and IEC standards. Our high-efficiency substations are specifically optimized for the variable load cycles of solar farms and BESS (Battery Energy Storage Systems), with rapid OEM customization available.
Q1: What is the main advantage of the dual-split winding configuration?
The dual-split winding transformer enables the substation to simultaneously receive power from two separate inverter streams.
Q2: Is this substation suitable for extreme outdoor environments?
Yes, the entire unit is built to survive in outdoor C4/C5 corrosive environments, which includes deserts and coastal areas.
Q3: What specific applications is this compact substation designed for?
It is engineered to handle the unique demands of utility-scale solar farms and Battery Energy Storage Systems (BESS).

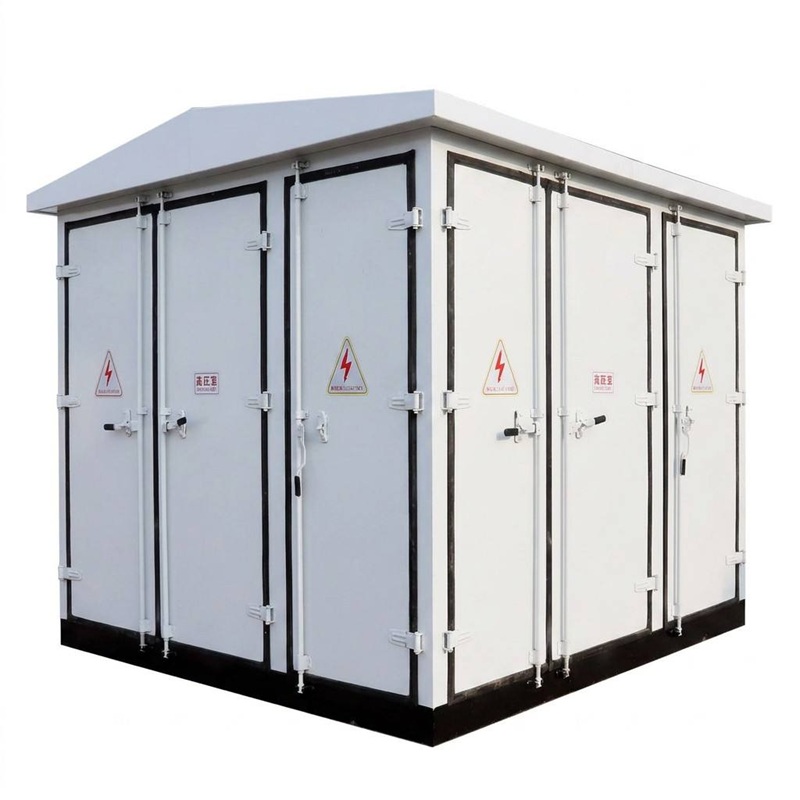

The highly integrated YB series European-style box-type substation features a "Mu" or "Pin" shaped layout, seamlessly combining high-voltage ring main units, transformers, and low-voltage switchgear within a single weather-resistant enclosure, making it the preferred solution for urban power distribution.
