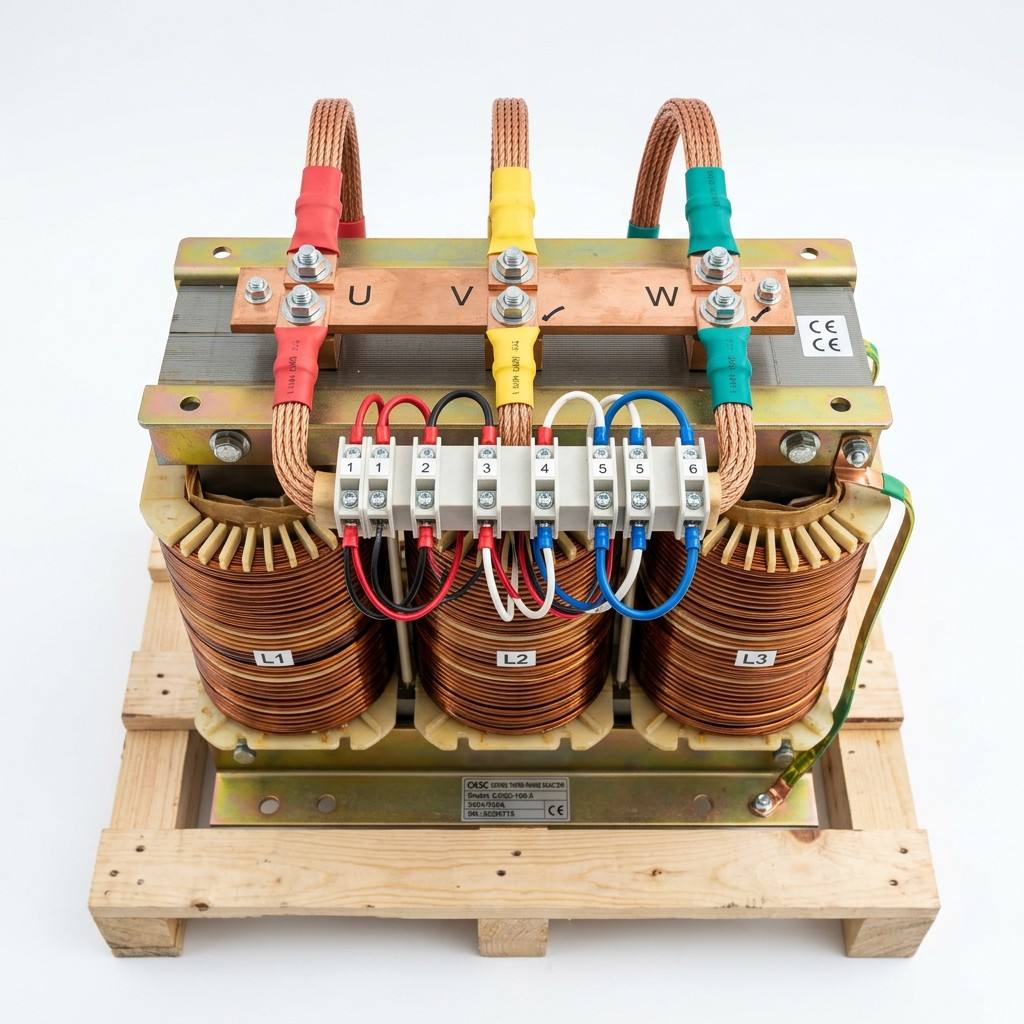

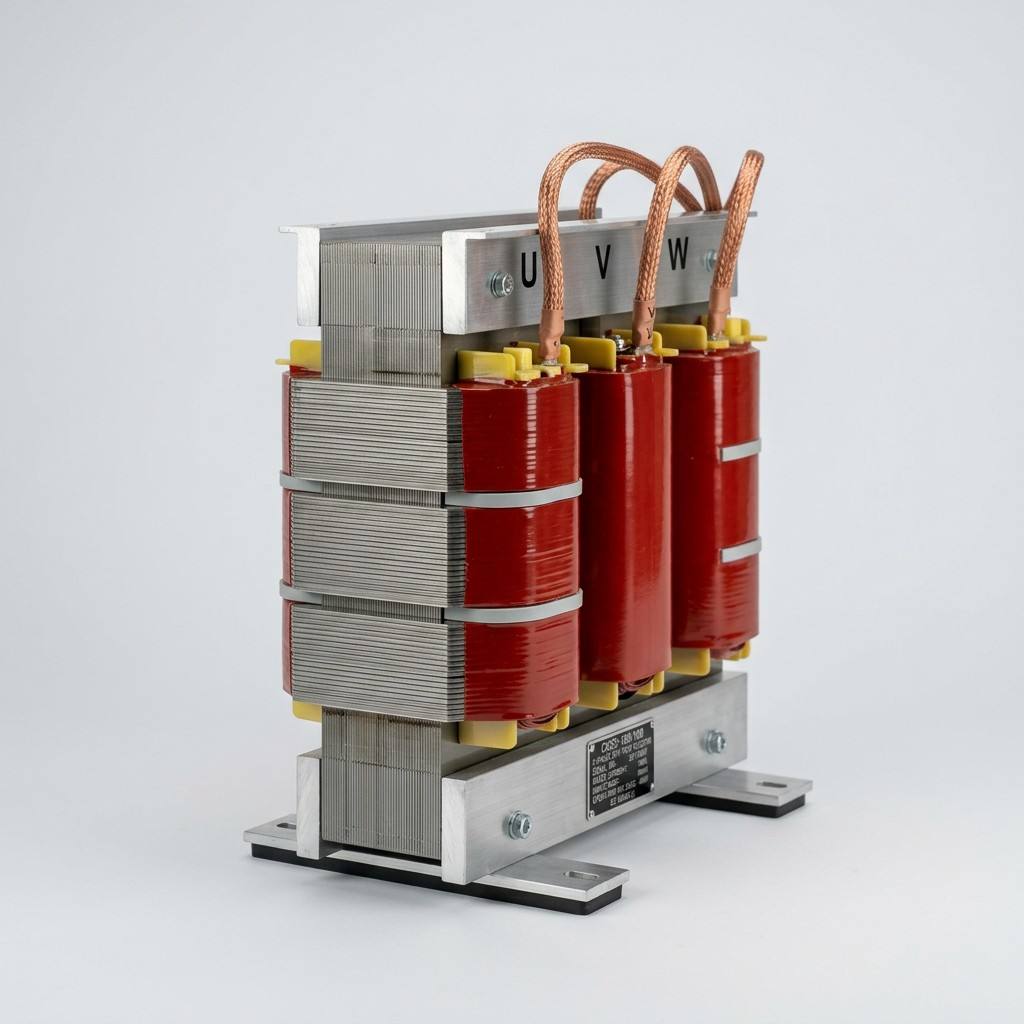

The CKSC series dry-type iron-core reactor is a core component of reactive power compensation systems. It optimizes power quality and extends the service life of capacitor banks by suppressing grid harmonics and limiting capacitor energization inrush currents.
Order(MOQ) :
5 UnitsPrice Range :
1850.00 USD/Unit

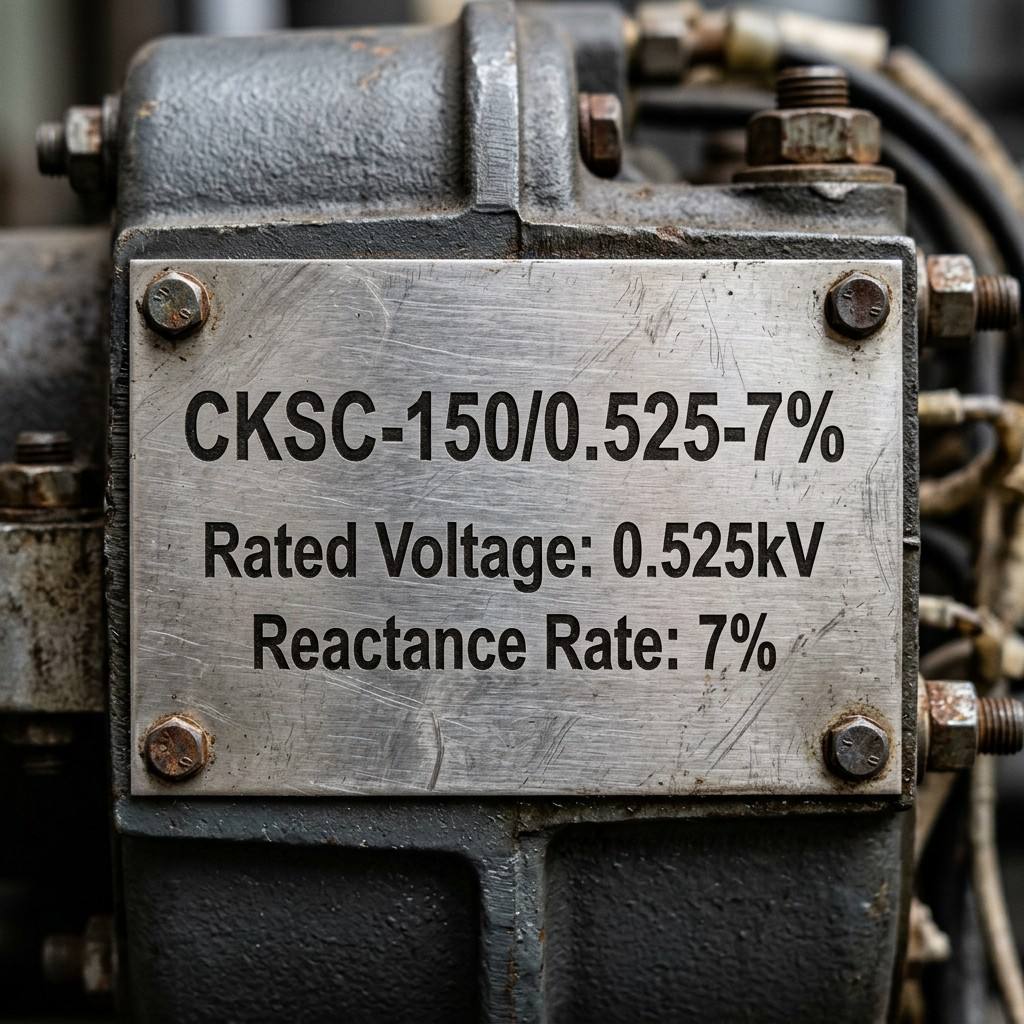

The CKSC series dry-type iron-core reactor is a core component of reactive power compensation systems. Engineered to work in series with capacitor banks, it effectively optimizes power quality and extends the service life of capacitor banks by suppressing grid harmonics and limiting capacitor energization inrush currents. By accurately tuning the reactance rate (typically 6%, 7%, or 13%), our reactors prevent parallel resonance and protect capacitors from overheating and premature failure. The iron core design provides high linearity and stable inductance even under heavy load conditions, ensuring long-term power quality for industrial facilities.
| Model Series | Core Material | Power / Capacity | Key Benefits | Application Industry | Certification |
|---|---|---|---|---|---|
| C-Amorphous | Metglas Amorphous | 50VA - 3kVA | Ultra-Low Core Loss | Solar / UPS | CE, RoHS |
| C-Audio | Grain Oriented Silicon | 25VA - 500VA | High Fidelity / Linear | Tube Amps / Guitar | Custom |
| C-Reactor | Iron Core CKSC | 30 - 150KVAR | Harmonic Mitigation | Power Quality | IEC, CE |
| C-Current | Permalloy / Nanocryst. | 5A - 1A Output | Class 0.2S Accuracy | Metering / Protection | IEC 61869 |
| C-Filter | Amorphous / Silicon | 10 - 100KVAR | High Frequency Filter | EV Charging / PV | UL, TUV |

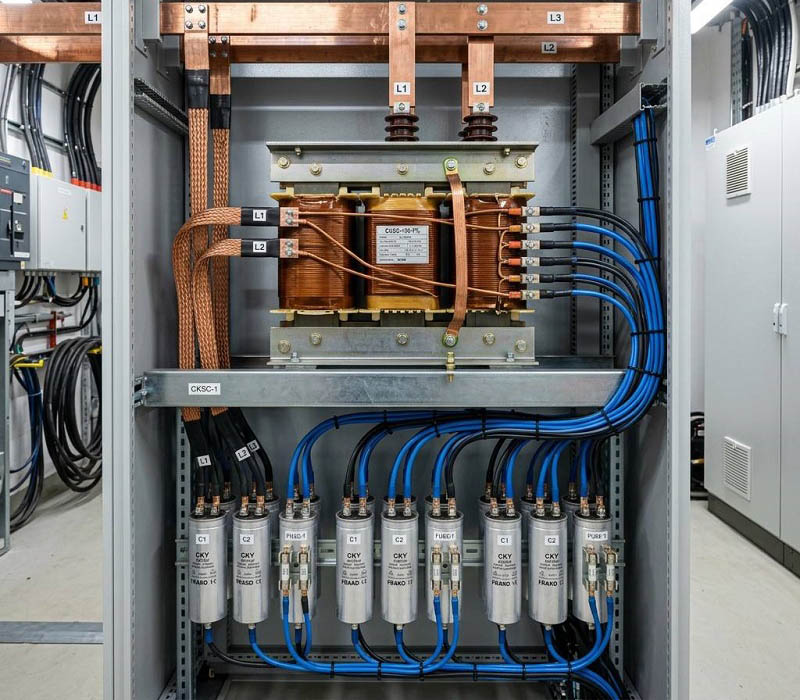

Critical protection and power quality optimization for industrial park capacitor cabinets, harmonic control systems, and inverter input/output circuits.
✔ Class H VPI Processing
Every reactor undergoes Vacuum Pressure Impregnation to eliminate air voids and ensure maximum insulation life.
✔ 1.8x Linearity Guarantee
We rigorously test to ensure inductance stability up to 1.8 times the rated current for heavy load scenarios.
✔ International Certifications
Manufactured in facilities compliant with strict IEC and CE global quality and safety standards.
✔ Rapid OEM Customization
Fast prototype development and tailored specifications for complex industrial power compensation grids.
Q1: How do these reactors protect capacitor banks?
By working in series with capacitor banks, they limit energization inrush currents and prevent parallel resonance. This keeps capacitors from overheating and drastically reduces the risk of premature failure.
Q2: What specific harmonics do these reactors mitigate?
Our CKSC reactors are carefully engineered to effectively target and suppress the 3rd, 5th, and 7th harmonics within modern electrical systems.
Q3: What makes your iron core design reliable under heavy loads?
The iron core provides exceptional linearity, meaning the inductance remains highly stable even when subjected to loads up to 1.8 times the rated current. Combined with Class H VPI insulation, it handles thermal stress effortlessly.
