The SCB13 series ultra-low-loss dry-type transformers are specifically designed for green, energy-efficient projects. They meet international IE3/IE4 energy efficiency standards, help buildings achieve LEED or BREEAM certification, and offer lower lifecycle operating costs.
Order(MOQ) :
1 UnitsPrice Range :
22,000.00 USD/Unit

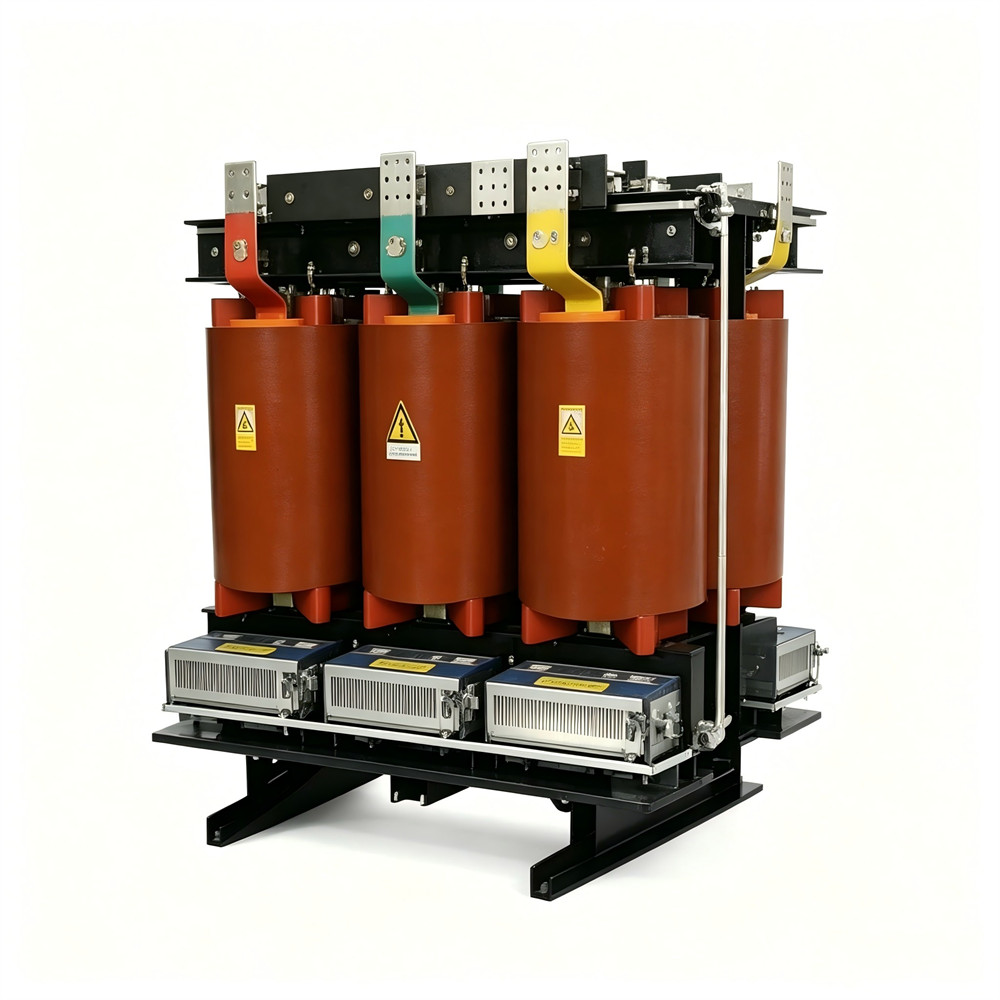

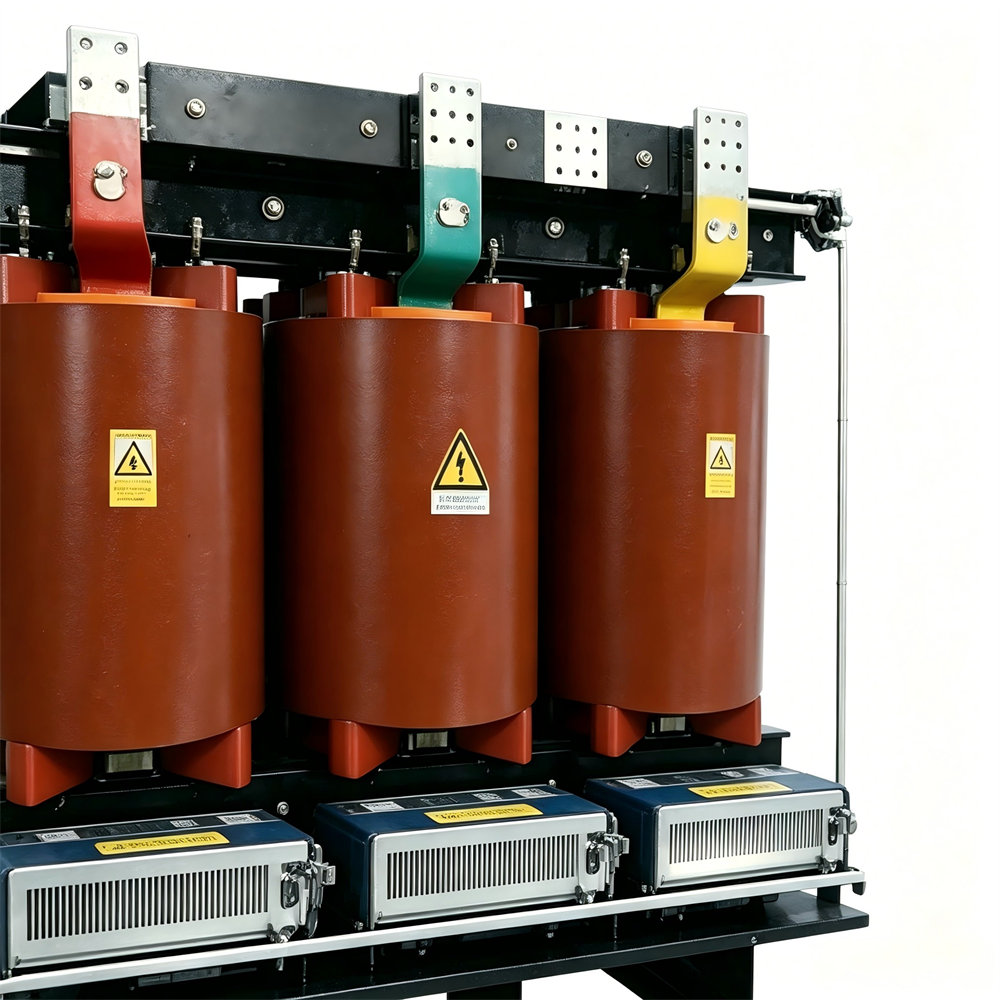

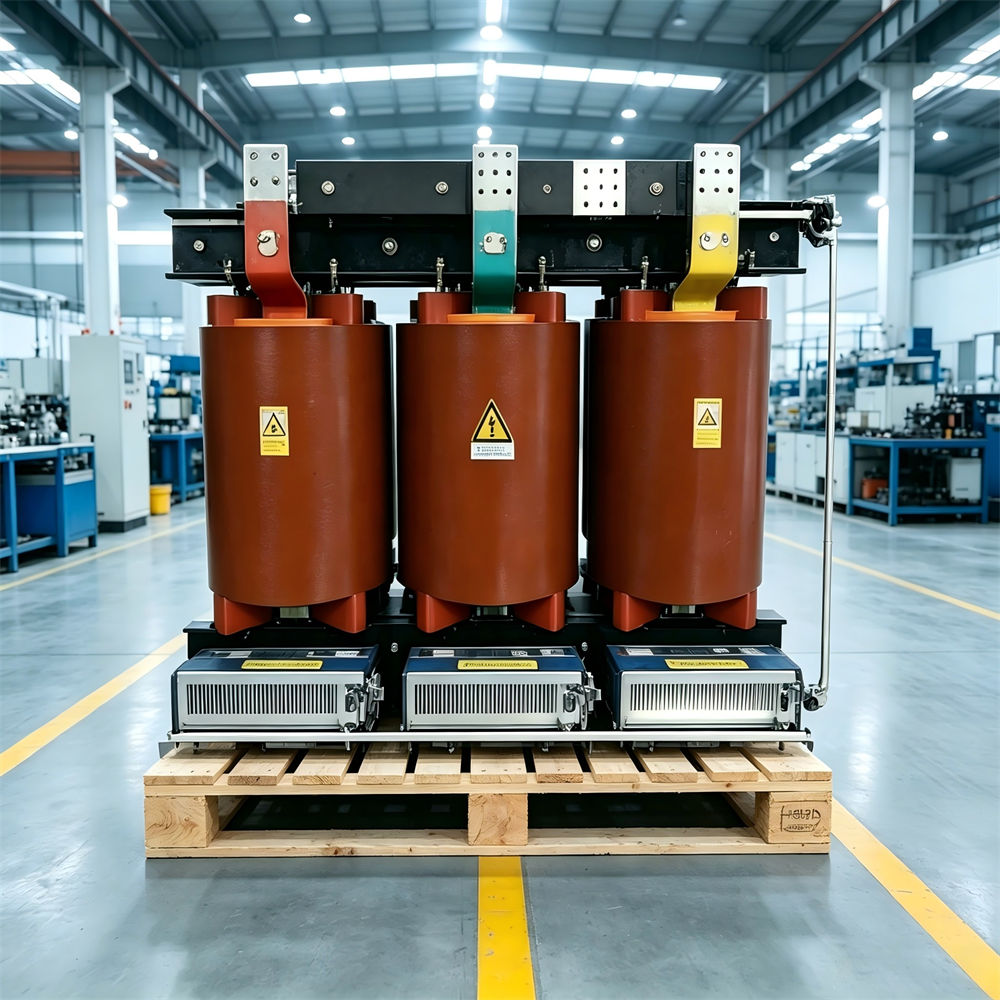

Optimized for modern green infrastructure, the SCB13 energy-efficient dry-type transformer (800kVA to 2500kVA) serves as a highly reliable indoor power distribution solution for sensitive environments like R&D laboratories and commercial high-rises. By exceeding stringent IE4 efficiency benchmarks, this eco-efficient cast resin transformer actively helps facilities achieve LEED certifications while drastically reducing long-term lifecycle costs. It operates entirely oil-free, allowing for safe installation directly at critical load centers without fire hazards. Fully backed by KEMA and CE certifications to ensure global grid compliance, the SCB13 series seamlessly integrates an ultra-quiet acoustic profile with intelligent real-time thermal monitoring. This comprehensive, maintenance-free design empowers electrical engineers to build safer, cost-effective, and environmentally responsible power systems that easily meet the strictest industrial standards.
|
Model Series |
Insulation Type |
Capacity Range |
Rated Voltage |
Cooling Method |
Standards |
|
SCB10/11 |
Cast Resin (Epoxy) |
250 - 2500kVA |
10kV / 11kV |
AN / AF |
IEC 60076 |
|
SCB13 |
Eco-Efficient Cast |
800 - 3150kVA |
10kV / 20kV |
Low Noise (<55dB) |
EU Tier 2 / IE4 |
|
35kV-Dry |
High Voltage Cast |
500 - 5000kVA |
33kV / 35kV |
Reinforced Cast |
IEC, CE |
|
Compact-11 |
Compact Indoor |
50 - 630kVA |
11kV / 0.415V |
Space Saving |
Commonwealth Std |
|
IEEE-Dry |
ANSI/IEEE Standard |
500 - 2500kVA |
4.16k - 34.5kV |
NEMA Enclosure |
IEEE C57, UL |
Superior Energy Efficiency: Features an optimized magnetic circuit design and imported high-permeability silicon steel sheets, significantly reducing standby power consumption.
Ultra-Quiet Design: Operates at noise levels below 55 dB, making it the ideal choice for noise-sensitive environments such as hospitals and schools.
Comprehensive Temperature Monitoring: Equipped with an integrated intelligent temperature control unit that displays three-phase winding temperatures in real time and provides alarm and trip protection.
High Insulation Class: Class F or H insulation, meeting operational requirements for harsh temperature and humidity conditions.
Green office buildings, modern hospitals, R&D laboratories, and high-end residential communities.

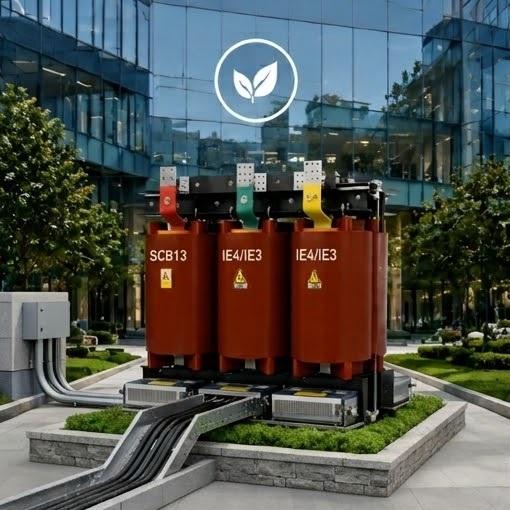

Green office buildings

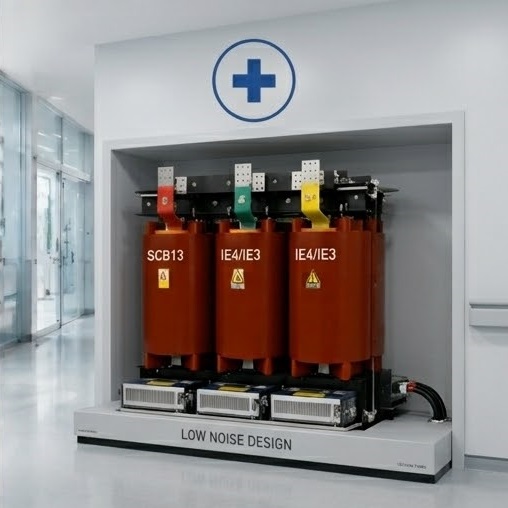

Modern hospitals

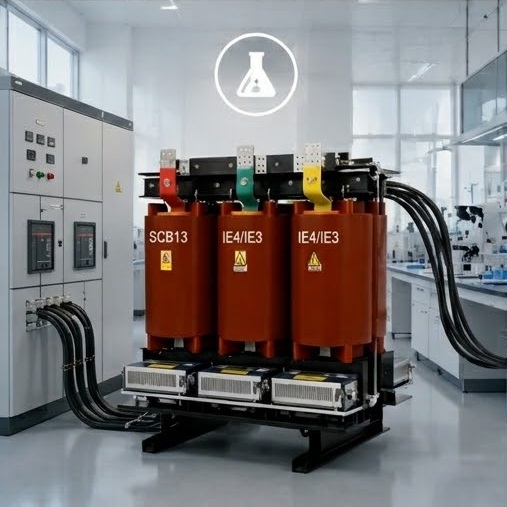

R&D laboratories

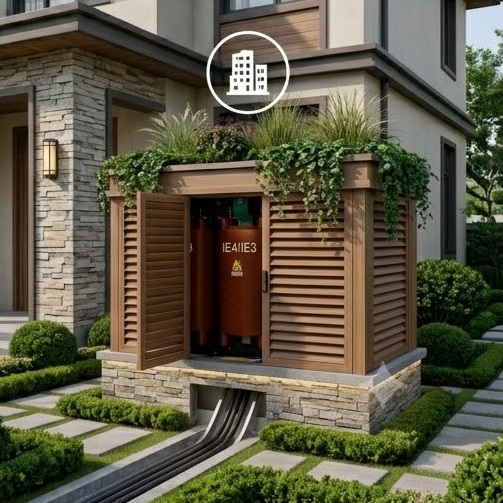

High-end residential communities
✔ Exceeding IE3/IE4 Efficiency Standards
Engineered with optimized magnetic circuits and high-permeability silicon steel sheets to significantly reduce standby power consumption. This ultra-low-loss performance directly lowers lifecycle costs and helps your building achieve LEED or BREEAM certification.
✔ Ultra-Quiet 55dB Operation
Designed specifically for noise-sensitive indoor environments. Operating at acoustic levels below 55 dB, it is the ideal eco-efficient power distribution solution for modern hospitals, high-end residential communities, and R&D laboratories.
✔ Intelligent Thermal Monitoring
Maximum operational safety is guaranteed through an integrated smart temperature control unit. It displays three-phase winding temperatures in real-time and features automated alarm and trip protection to prevent overheating under continuous loads.
✔ Class F/H Insulation Reliability
Built to meet rigorous operational requirements in harsh temperature and humidity conditions. The advanced eco-efficient cast structure ensures outstanding thermal stability, providing a highly reliable, low-maintenance lifespan for your critical power systems.
Q1: How does the SCB13 dry-type transformer help facilities achieve LEED certification?
The SCB13 series is specifically engineered to meet and exceed strict international IE3/IE4 energy efficiency standards. By utilizing an optimized magnetic circuit design and imported high-permeability silicon steel sheets, it significantly reduces standby power consumption. This ultra-low-loss performance directly lowers lifecycle operating costs and provides the energy savings necessary to support green building ratings like LEED and BREEAM.
Q2: Is this transformer suitable for noise-sensitive indoor environments like hospitals and commercial high-rises?
Yes, it is highly recommended for these applications. The SCB13 features an ultra-quiet design, operating at noise levels strictly below 55 dB. Combined with its eco-efficient cast resin structure that eliminates fire risks and oil leaks, it serves as an extremely safe, low-noise power distribution solution for modern hospitals, R&D laboratories, and high-end residential communities.
Q3: What built-in safety and thermal monitoring features does the SCB13 series offer?
Operational safety is guaranteed through a comprehensive temperature monitoring system. Each SCB13 transformer is equipped with an integrated intelligent temperature control unit. This device displays three-phase winding temperatures in real-time and includes automated alarm and trip protection mechanisms to prevent overheating, ensuring reliable performance under continuous heavy electrical loads.
