Application Solutions

Transformer Solutions for Healthcare & Critical Facilities

Healthcare & Critical Facility Power



Industry Challenges

Hospitals, data centers, pharmaceutical cleanrooms, and other critical facilities place distribution transformers under a unique set of requirements that go far beyond standard commercial building power:

  • Zero-tolerance for unplanned outages: Operating theaters, ICU systems, and diagnostic imaging suites demand distribution transformers with proven MTBF exceeding 30 years.
  • Stringent fire-safety mandates: Building codes increasingly require dry-type transformers only, eliminating oil-filled equipment from occupied buildings to remove fire load and smoke risk.
  • Low electromagnetic field (EMF) emissions: MRI suites and sensitive laboratory equipment require minimal stray magnetic fields to avoid image artifacts and measurement interference.
  • Stringent voltage quality: Transformers must maintain voltage within ±2% under dynamic loading to protect downstream UPS systems and precision medical equipment.

The Pain Point:

Critical facilities cannot tolerate even seconds of power interruption. Standard transformers pose unacceptable fire risks indoors and fail to meet the stringent acoustic, EMF, and reliability demands of life-safety and tier-certified data applications.

Hospital and Critical Facility Power Supply

Our Transformer Solution

For healthcare and critical facility power distribution, we deploy SCB series cast-resin dry-type distribution transformers engineered specifically for life-safety applications.

SCB14 Low-Noise Dry-Type (Hospital Indoor)

  • Fire-safe by design: Epoxy resin encapsulation is self-extinguishing and compliant with healthcare fire codes prohibiting oil-filled equipment. No fire-rated vault required.
  • Ultra-quiet operation: Sound level ≤45dB(A) for units ≤800kVA (per IEC 60076-10), ensuring inaudible operation near patient wards and ICU suites.
  • Redundant configuration: Compact footprint enables N+1 redundant distribution with automatic bus transfer schemes.
  • Low inrush current: Step-lap core joint construction reduces magnetizing inrush to <8× rated current to prevent nuisance tripping during generator transfer.

SCB13 H-Class Dry-Type (Data Center & Pharma)

  • H-class (180°C) insulation: Combined with AF forced cooling, rated for continuous 150% overload to support Tier III/IV concurrent maintainability requirements.
  • Real-time tracking: 6 embedded PT100 RTD sensors integrated with BMS/SCADA for predictive maintenance and winding hotspot tracking.
  • IP31 Protection: Galvanized steel enclosure suitable for pharmaceutical cleanroom adjacent installations.

External Campus Distribution: For critical facilities requiring outdoor substation distribution, our S13-M sealed oil-immersed distribution transformers serve external plant rooms and campus loops with an ultra-low-loss design, deployable in N+1 redundant configurations.

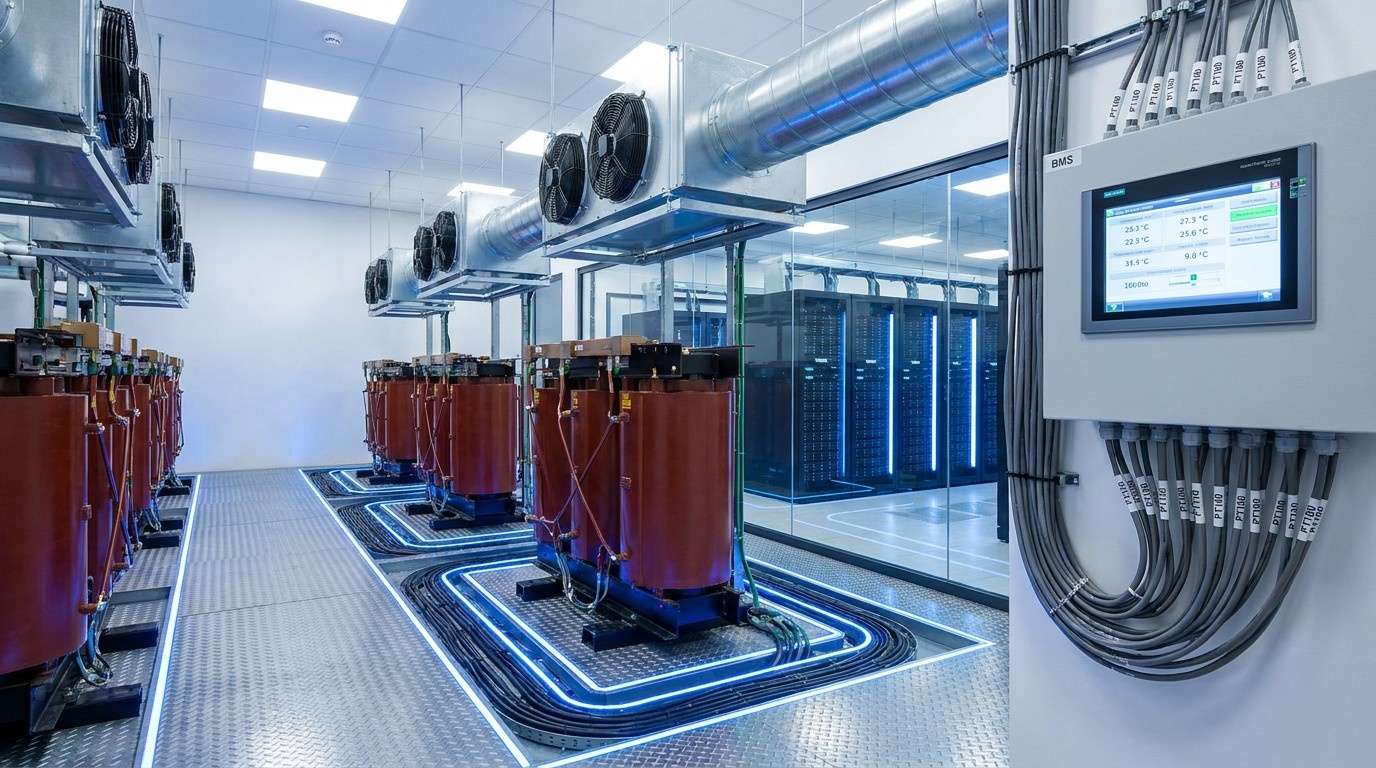

Critical Facility Indoor Dry-Type Transformer

Recommended Products

SCB14-LN
Low-Noise Dry-Type

200–2500 kVA

≤45dB(A), hospital fire-code compliant

SCB13-HC
H-Class Dry-Type

500–3150 kVA

150% continuous overload, BMS integrated

SCB13-RD
Redundant Dry-Type Pair

2 × 500–2500 kVA

N+1 factory-matched pair

S13-M
Sealed Oil-Immersed

200–2500 kVA

For external/campus loop distribution

Operational Track Record

  • Supplied 120+ SCB14 low-noise dry-type distribution transformers to hospital projects, with units operating continuously for 7+ years without a single unplanned outage in life-safety branch circuits.
  • Delivered N+1 redundant SCB13 transformer pairs for multiple data center facilities, supporting Tier III certified uptime with zero transformer-related downtime since commissioning.
  • SCB series distribution transformers installed in pharmaceutical GMP cleanroom facilities, where epoxy resin encapsulation eliminates the particulate shedding risk associated with some insulation systems.
  • All healthcare-spec units manufactured under ISO 9001:2015, with full FAT (Factory Acceptance Test) documentation including partial discharge measurement (<10pC) and sound level certification.

Technical Parameter Quick Reference

Parameter SCB14-LN Hospital SCB13-HC Data Center S13-M Campus
Rated Capacity 200–2500 kVA 500–3150 kVA 200–2500 kVA
HV Rating 6/10/11/20 kV 6/10/11/20 kV 10/11/20/33 kV
LV Rating 0.4 kV 0.4 kV 0.4 kV
Insulation Class F (155°C) H (180°C) A
Noise Level (≤800kVA) ≤45 dB(A) ≤48 dB(A) ≤50 dB(A)
Overload (AF mode) 150% / 2 hr 150% continuous 120% / 2 hr
Enclosure IP21/IP31 IP21/IP31 Outdoor IP55
Partial Discharge <10 pC <10 pC N/A
Fire Performance Self-extinguishing Self-extinguishing N/A
