Industrial Power Distribution Transformers Solutions

Industrial Power Distribution



Industry Challenges

Manufacturing plants, processing facilities, and heavy industrial operations present distribution transformers with a uniquely punishing set of demands:

  • Continuous 24/7 operation with high load factors (70–85%) — far exceeding the 30–50% typical of commercial buildings.
  • Severe harmonic pollution from VFDs, arc furnaces, welding lines, and large motor drives that elevate winding eddy-current losses by 30–50% above fundamental-frequency design limits.
  • Space-constrained electrical rooms where compact footprint and front-access cable termination are non-negotiable.
  • Aggressive environments — dust, oil mist, chemical vapors, and ambient temperatures exceeding 45°C in steel mills, foundries, and textile plants.

The Pain Point:

A single distribution transformer failure can shut down an entire production line costing tens of thousands of dollars per hour in lost output.

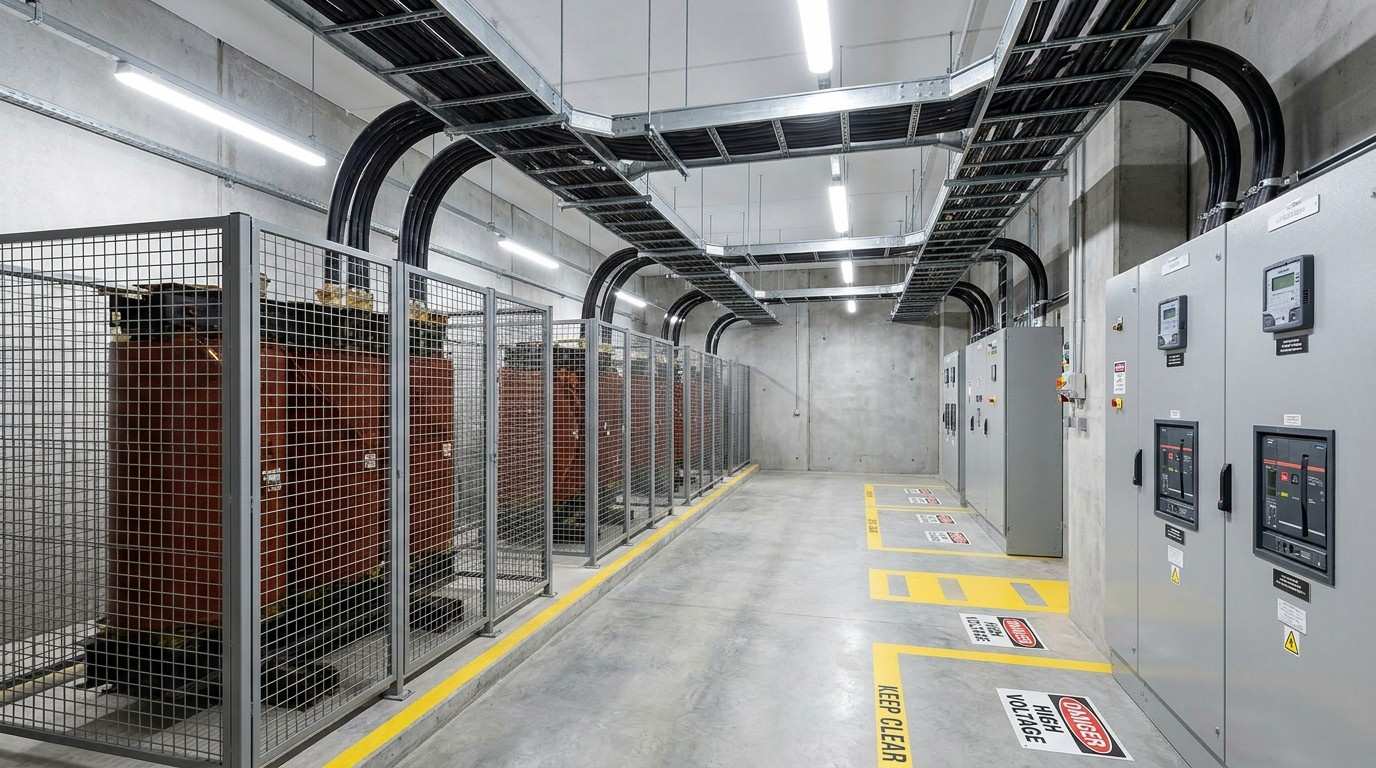

Heavy Industrial Power Distribution Facility

Our Transformer Solution

We supply two categories of distribution transformer optimized for industrial power distribution, alongside supplementary low-voltage isolation solutions.

SCB Series Cast-Resin Dry-Type (Indoor Plant Distribution)

  • Self-extinguishing epoxy resin encapsulation with Class F/H insulation system — zero fire risk, eliminates the need for oil-containment pits and fire-rated vaults.
  • K-factor rated winding design available (K-4, K-9, K-13) for plants with high VFD and rectifier penetration — oversized neutral bar (200%) and interleaved winding geometry to manage triple-N harmonics without derating.
  • AF (forced air cooling) mode provides 150% rated capacity for 30 minutes — critical for motor-starting sequences, batch process peak demands, and compressor staging.
  • Compact footprint: a 1600kVA SCB13 unit occupies ≤2.2m × 1.6m floor area with front-access HV and LV terminations — enabling two-transformer redundancy in standard electrical rooms.

S13-M Sealed Oil-Immersed (Outdoor Plant Substation)

  • Fully sealed corrugated tank with elastic fin oil-expansion compensation — zero maintenance for 15+ years, ideal for unmanned outdoor plant substations.
  • 3mm+ tank steel with reinforced welding and C4/C5 corrosion coating options for chemical plant and coastal industrial environments.
  • Available with off-circuit tap changer (±5% in 2.5% steps) or on-load tap changer for plants requiring voltage adjustment without supply interruption.

K-Factor Harmonic Mitigation: For industrial facilities with >25% non-linear load ratio, we apply IEEE C57.110 K-Factor derating methodology during transformer selection to ensure the winding hotspot temperature remains within the insulation thermal class limit even under severe harmonic loading.

Automation & Control Supply: Additionally, for automation control cabinets requiring power and signal isolation, we also provide toroidal transformers (15–5000 VA) and C-Core transformers (100–10,000 VA) as supplementary product lines for low-voltage isolated power supply in PLC control cabinets, servo drive cabinets, and sensor arrays.

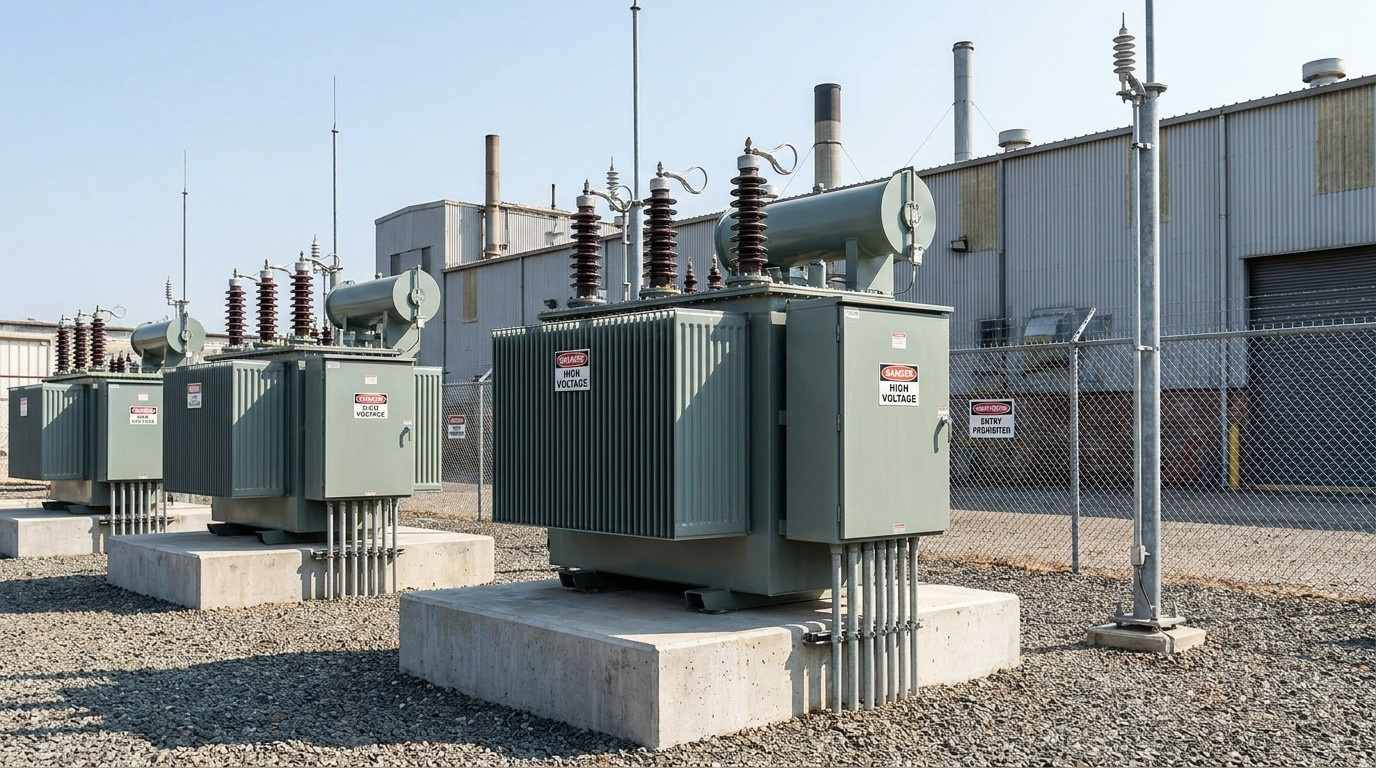

Industrial Transformer Installation

Recommended Products

SCB10 / SCB13
Cast-Resin Dry-Type

30–3150 kVA

K-factor rated, AF overload, compact

S13-M
Sealed Oil-Immersed

50–2500 kVA

Zero maintenance, outdoor rated

S13-M.RL
Amorphous Core Oil-Type

50–1600 kVA

70% lower no-load loss vs. standard

YBM-12/0.4
Box-Type Substation

100–1600 kVA

Factory pre-assembled, rapid deploy

Operational Track Record

  • 500+ distribution transformers installed in industrial facilities across manufacturing, steel processing, and chemical production sectors.
  • Supplied SCB13 K-9 rated dry-type transformers (800–2000kVA) for a major automotive assembly plant expansion — handling 60% VFD-driven load with zero hotspot alarms in 3+ years of continuous 24/7 operation.
  • Delivered S13-M sealed transformers for multiple cement plant outdoor substations, operating reliably in high-dust, +48°C ambient conditions for 5+ years.
  • Long-term framework agreement with an industrial park developer providing standardized YBM box-type substations for multi-tenant manufacturing facilities.

Technical Parameter Quick Reference

Parameter SCB13 Industrial Dry-Type S13-M Industrial Oil-Type
Rated Capacity 30–3150 kVA 50–2500 kVA
HV Rating 6/10/11/20 kV 6/10/11/20/33 kV
LV Rating 0.4 kV 0.4 kV
K-Factor Option K-4 / K-9 / K-13 K-4 / K-9
Overload (AF mode) 150% / 30 min 120% / 2 hr
Ambient Tolerance -25°C to +50°C -40°C to +55°C
Corrosion Class C3 (C4 optional) C4 (C5-M optional)
Impedance Voltage 6.0% 4.0% / 4.5%
